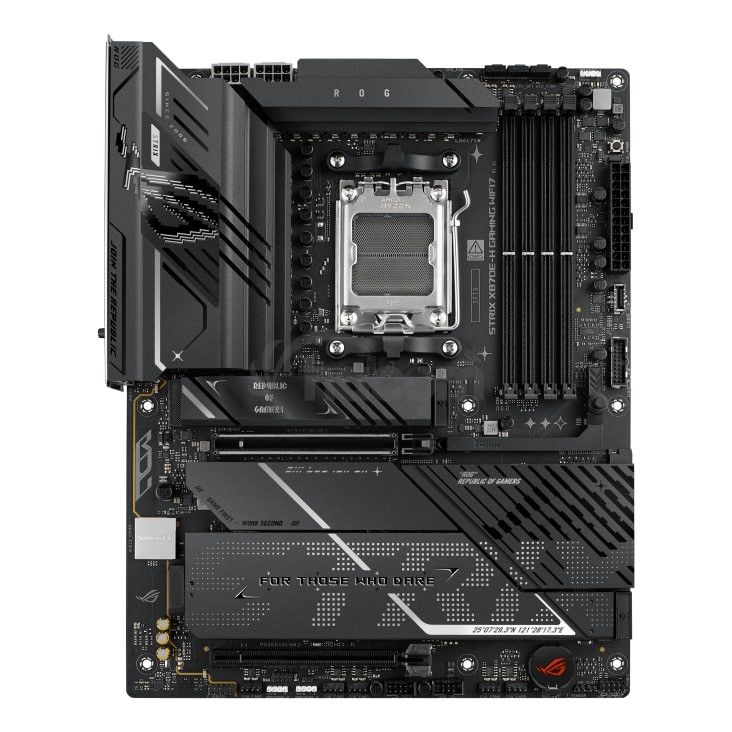

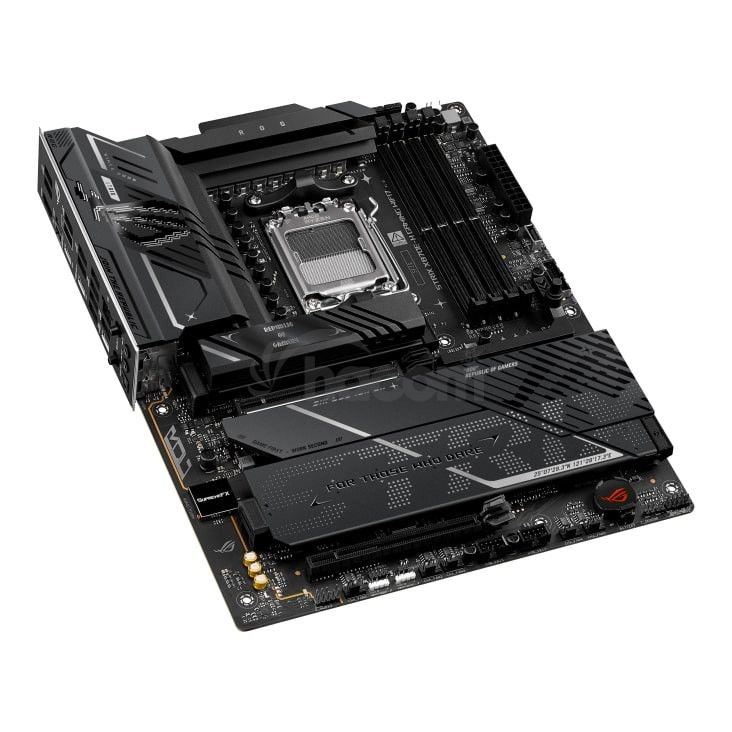

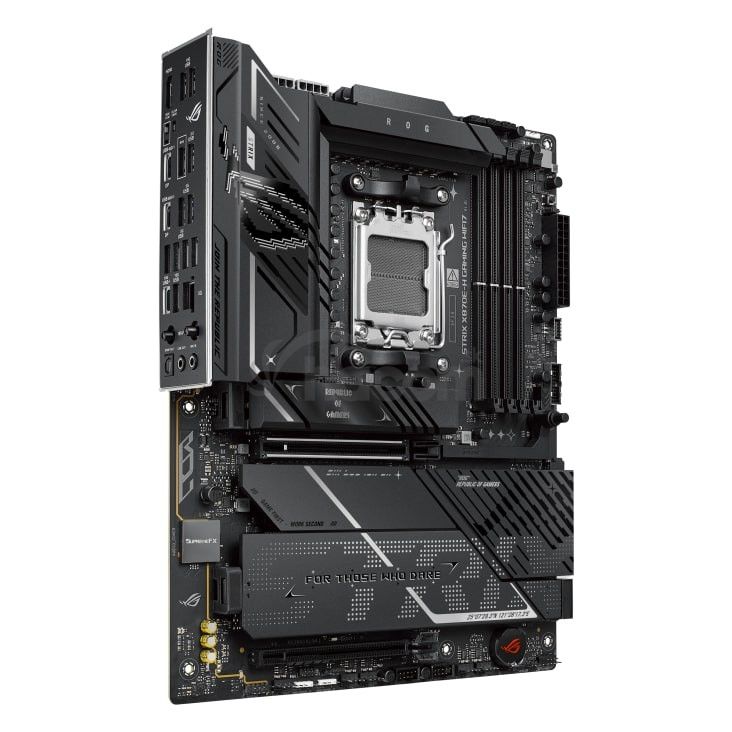

ASUS ROG STRIX X870E-H GAMING WIFI7

CPU: Socket AM5 pre procesory AMD Ryzen 9000, 8000 a 7000 série desktopových procesorov
Chipset: AMD X870E
Pamäť:
4× DIMM sloty, maximálne 256 GB DDR5
Podpora až 8000+ MT/s (pri pretaktovaní) s procesormi Ryzen™ 9000, 8000 a 7000 série
Dvojkanálová architektúra
Podpora AMD EXPO™
Podpora DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)


Grafika (integrované výstupy):
1 HDMI port
2 USB4 porty s podporou DisplayPort 1.4a

Rozširujúce sloty
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Úložisko:
4 x M.2 slot a 4 x SATA 6Gb/s port

Sieť: 1 x Realtek 5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4

USB:
Zadné USB
2 x USB4® (40 Gbps) ports (2 x USB Type-C®)
4 x USB 10 Gbps ports (3 x Type-A + 1 x USB Type-C® s 30 W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Predné USB
1 x USB 20Gbps konektor (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio: Realtek ALC1220P 7.1 Surround Sound

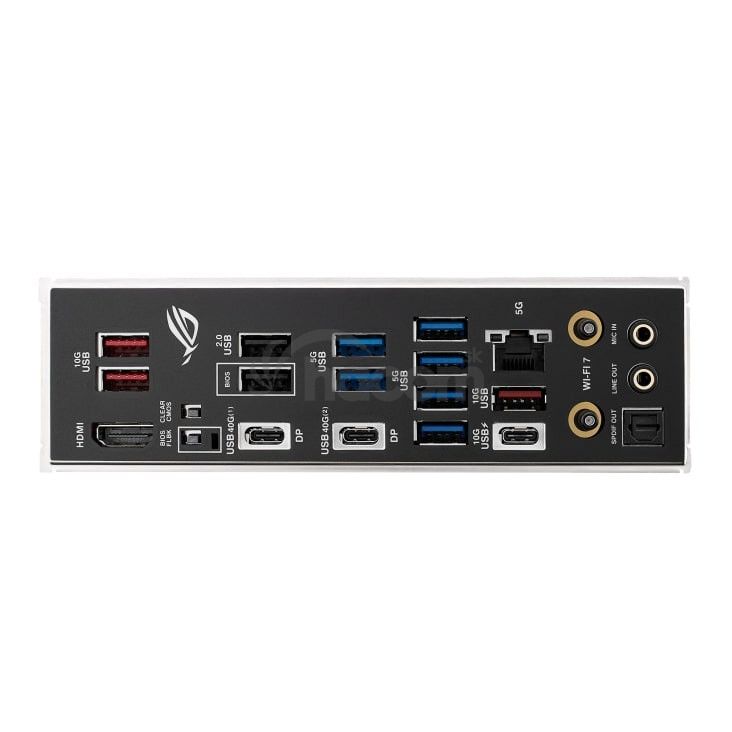

Zadné I/O porty:
2 x USB4® (40 Gbps) ports (2 x USB Type-C®)
4 x USB 10 Gbps ports (3 x Type-A + 1 x USB Type-C® s 30 W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Interné I/O konektory:
Chladenie a ventilátor
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Napájanie
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Úložisko
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 20Gbps konektor (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Rôzne
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Štart button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Formát: ATX Form Factor

Odkaz na oficiálny web: https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-h-gaming-wifi7/
