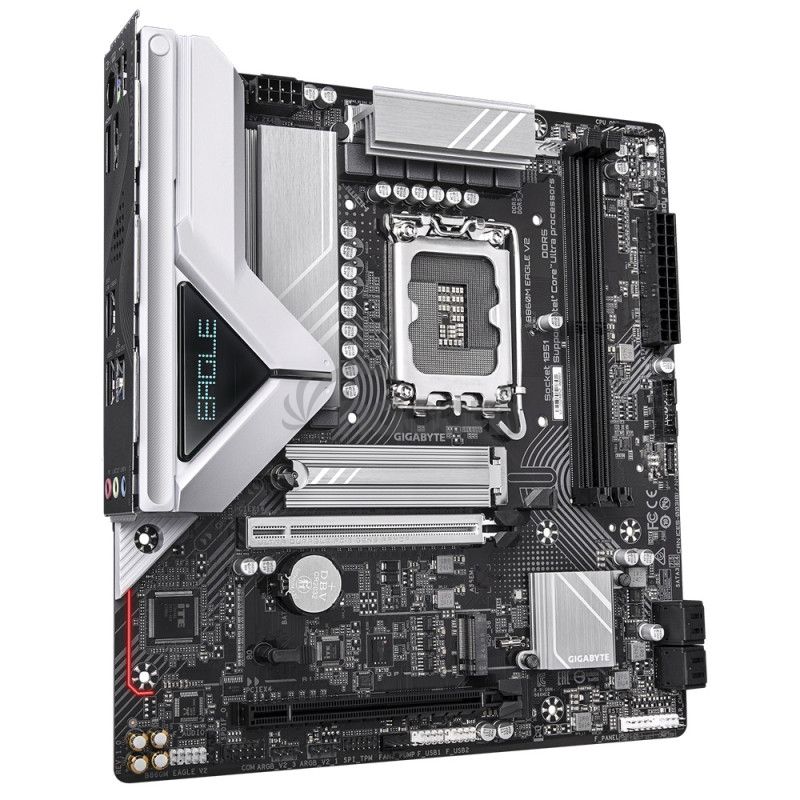

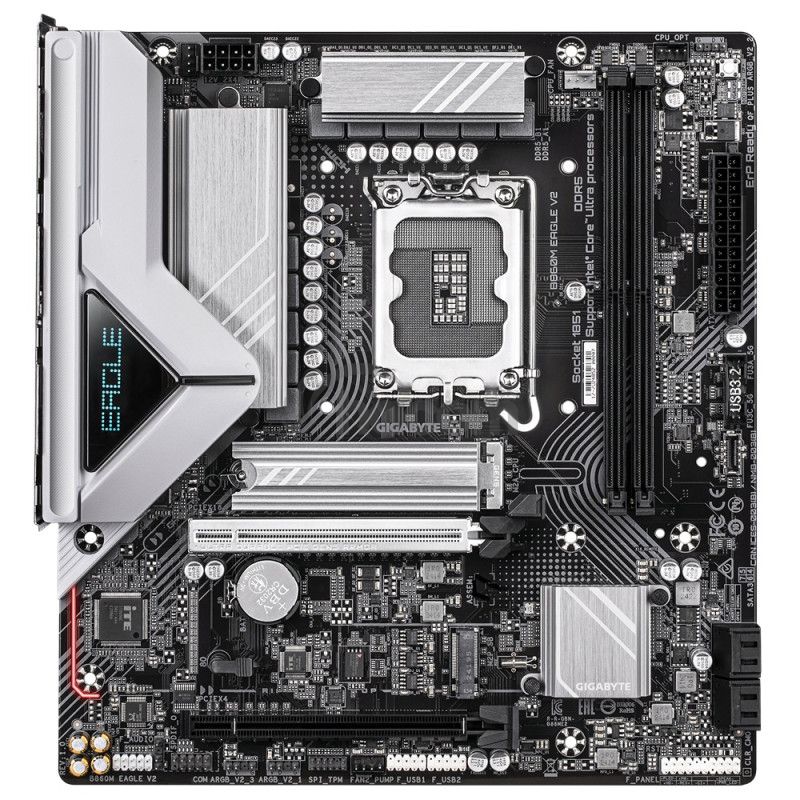

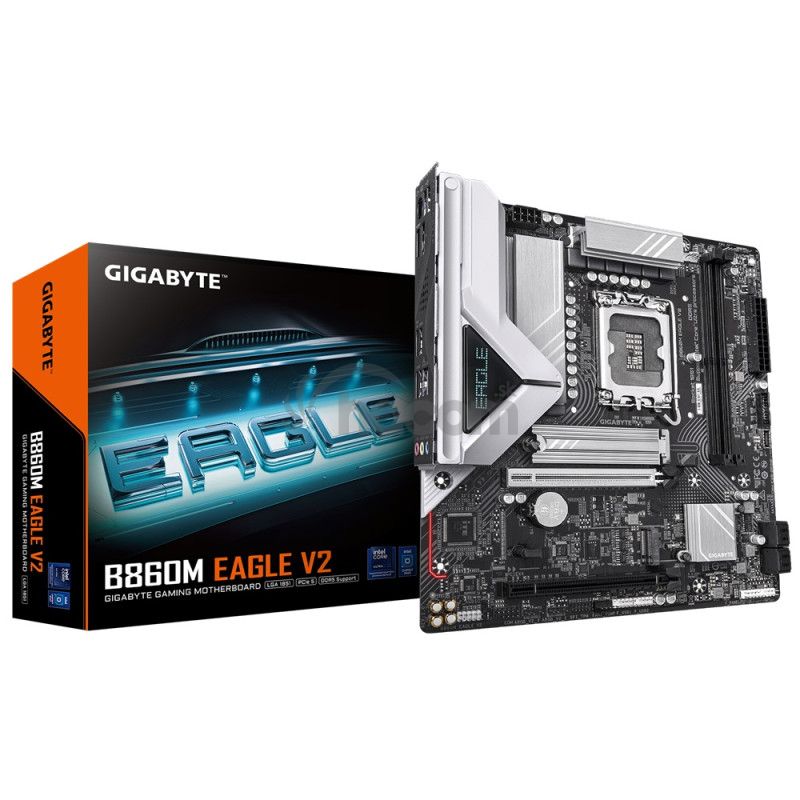

GIGABYTE B860M EAGLE V2

Chipset: Intel B860 Express Chipset
Rozmerový formát: Micro ATX Form Factor ; 24.4cm x 22.5cm
Podpora pre procesory: Intel® Core™ Ultra
Pätica procesora: LGA1851

Pamäť:
* 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
*Dual channel memory architecture
*Support pre ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
*Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
*Support for Extreme Memory Profile (XMP) memory modules
Grafické výstupy:
* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3
* 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version
Zvuková karta:
*Realtek® Audio CODEC
*High Definition Audio
*2/4/5.1/7.1-channel
*Support for S/PDIF Out
Ethernet: Realtek® 2.5 GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozširujúce sloty:
* 1 x PCI Express x16 slot, supporting PCIe 5.0 a bežiaci na x16 (PCIEX16) - Slot PCIEX16 môže len podporovať grafické karty alebo NVMe SSD. If only graphics card je nainštalovaný, je nainštalovaný it v PCIEX16 slot
* 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Úložný priestor:
* 1 x M.2 konektor (Socket 3, M kľúč, typ 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
* 1 x M.2 konektor (Socket 3, M key, typ 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
* 4 x SATA 6Gb/s konektory

RAID radič: RAID 0, RAID 1, RAID 5, a RAID 10 support for SATA storage devices

USB:
* 1 x port USB Type-C® s podporou USB 3.2 Gen 1, dostupnou prostredníctvom vnútorného USB headeru
* 5 x USB 3.2 Gen 1 ports (3 porty na back panel, 2 porty dostupný cez internal USB header)
* 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
* 4 x USB 2.0/1.1 ports dostupná cez vnútorné USB headers

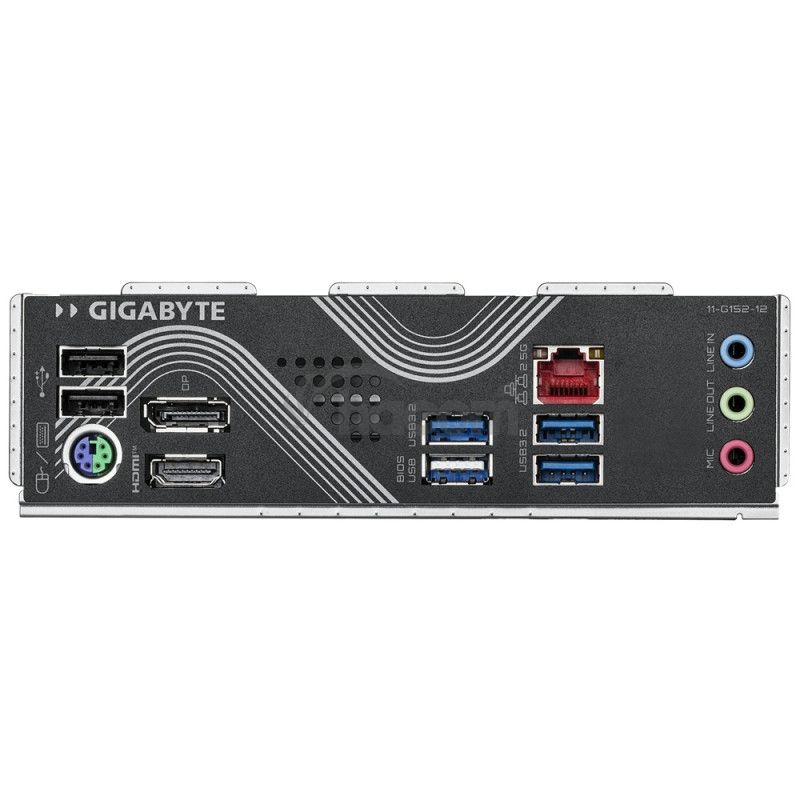

Porty na zadnom paneli:
* 1 x PS/2 keyboard/mouse port
*1 x HDMI por*
*1 x DisplayPort*
*3 x USB 3.2 Gen 1 ports
*3 x USB 2.0/1.1 ports
*1 x RJ-45 port
*3 x audio jacks

Interné porty:
Napájanie
* 1 x 24-pin ATX main power connector
*1 x 8-pin ATX 12V power connector
Súvisiaci s ventilátorom a chladením
* 1 x CPU fan header
*1 x CPU ventilátor/water cooling pump header
*1 x system fan header
*1 x systém ventilátora/water cooling pump header
Súvisiaci s úložiskom
* 2 x M.2 Socket 3 konektory
*4 x SATA 6Gb/s konektory
USB
* 1 x USB Type-C® header, s USB 3.2 Gen 1 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
Ostatné
* 3 x addressable RGB Gen2 LED strip headers
*1 x front panel header
*1 x front panel audio header
*1 x S/PDIF Out header
*1 x Trusted Platform Module pre hlavu (For GC-TPM2.0 SPI V2 module only)
*1 x serial port header
*1 x Q-Flash Plus button
*1 x reset jumper
*1 x Clear CMOS jumper

BIOS:
*1 x 256 Mbit flash
*Use of licensed AMI UEFI BIOS
*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Odkaz na stránku výrobcu: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp
