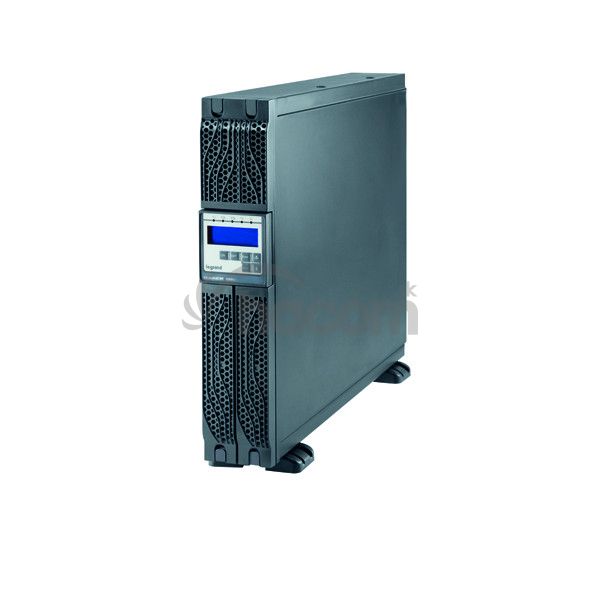

Legrand DAKER DK + 3/1 10KVA UPS bez batérií

Legrand DAKER DK + 3/1 10KVA UPS bez batérií

Základné parametre systému a stav UPS, vrátane odh



Input voltage 176-280 V

Primary frequency 47.5-63 Hz

Number of phases primary 3

Output voltage 228-232 V

Secondary frequency 50-60 Hz

Output effective power 9000 W

Output apparent power 10000 VA

Number of phases secondary 1

SNMP Yes

Voltage type AC

Height 440 mm

Width 132 mm

Depth 680 mm

Weight 28 kg

Bridging time full load 0 min

Suitable for network-management Yes

USV- technology Online

Construction type 482.6 mm (19 inch) device

Max. voltage distortion output (linear load) 3 %

Output power factor 0.9

Overall efficiency 90 %

Efficiency in eco-mode 98 %

Potential free switch contact No

Auto shut down function No

Input connection Fixed connection

Number of output connections fixed connection 1

Degree of protection (IP) IP21

Operating / setting temperature 0-40 °C

Storage temperature 0-50 °C

Supply current 54-54 A

Sound level 50 dB

Terminal marking indication Yes

Type of load Universal

With socket outlet Yes

IEC code (Pack1) VRLA

Element Composition (Pack1) Lead-acid

Number of Single Element (Pack1) 0
