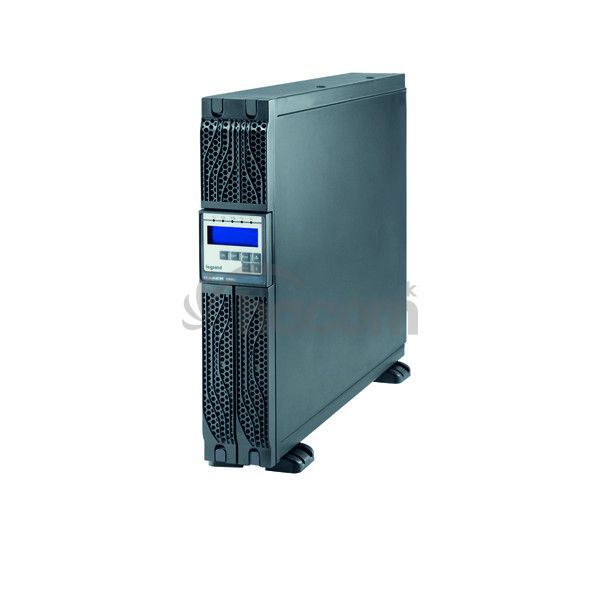

Legrand DAKER DK + 6 KVA UPS bez batérií
Input voltage 176-280 VPrimary frequency 47.5-63 Hz
Number of phases primary 1
Output voltage 228-232 V
Secondary frequency 50-60 Hz
Output effective power 6000 W
Output apparent power 6000 VA
Number of phases secondary 1
SNMP Yes
Voltage type AC
Height 440 mm
Width 88 mm
Depth 680 mm
Weight 25 kg
Bridging time full load 0 min
Suitable for network-management Yes
USV- technology Online
Construction type 482.6 mm (19 inch) device
Max. voltage distortion output (linear load) 3 %
Output power factor 1
Overall efficiency 94 %
Efficiency in eco-mode 97 %
Potential free switch contact No
Auto shut down function No
Input connection Fixed connection
Number of output connections fixed connection 1
Degree of protection (IP) IP21
Operating / setting temperature 0-40 °C
Storage temperature 0-50 °C
Supply current 33-33 A
Sound level 50 dB
Terminal marking indication Yes
Type of load Universal
With socket outlet Yes
IEC code (Pack1) VRLA
Element Composition (Pack1) Lead-acid
Number of Single Element (Pack1) 0
Parametre
| Hmotnosť | 25 kg |
|---|
