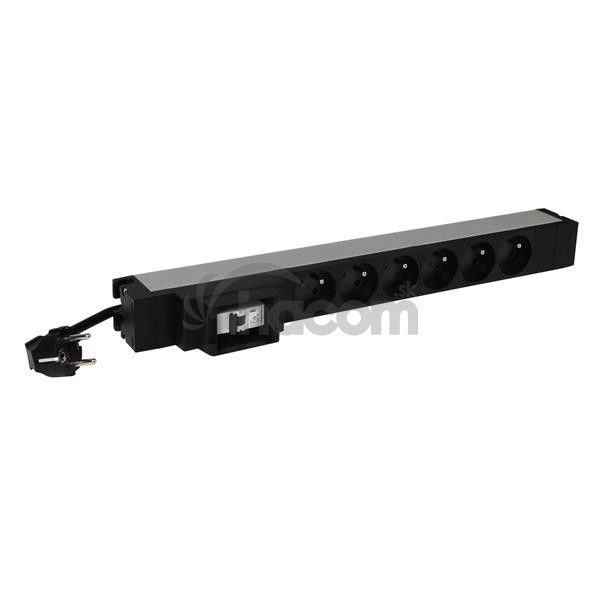

Legrand PDU NAPÁJACÍ BLOK 6X 230V + ISTIČ

Legrand PDU NAPÁJACÍ BLOK 6X 230V + ISTIČ

PDU 19 palcov 1U so 6 x 2P+E francúzskymi štandardnými zásuvkami na napájanie zariadení v 19-palcových skriniach.

S hliníkovým krytom, zásuvkovými modulmi, montážnym a ukončovacím riešením.

S prídavným MCB C16 6kA.

Charakteristika produktu
Jednofázový
6 x 2P+E francúzske/belgické štandardné zásuvky vybavené ochrannými uzávermi
Vstupné napätie 230 V
Vstupný prúd 16 A
Maximálny výkon 3,7 kW



Mounting dimension (standardised) 482.6 mm (19 inch)

Mounting size 465.1 mm

Mounting direction Horizontal/vertical

Electrical connection Connection cable with plug

Cable length 3 m

Number of miniature circuit breakers (MCB) 1

Number of socket outlets with protective contact CEE 7/3 (type F) 0

Number of socket outlets with earth pin 6

Number of C13 socket outlets 0

Number of C19 socket outlets 0

Number of C20 socket outlets 0

Number of socket outlets British Standard BS 1363 0

Number of socket outlets Swiss standard type 13 0

Number of socket outlets Swiss standard type 15 0

Number of socket outlets Swiss standard type 23 0

Number of socket outlets Swiss standard type 25 0

Number of other socket outlets 0

Number of height units 1

Length 465 mm

Width 44.3 mm

Depth 52.5 mm

Supply voltage 230 V

Overvoltage category 2

Mains filter No

Switchable No

SNMP No

With display No

Evaluation Local

With LED indication No

With fuse No

Ampere meter No

Temperature measurement No

With mounting material Yes

Colour Black

degree of impact strength (IK) Not applicable

Degree of protection (IP) IP40

Operating / setting temperature -5-40 °C

Storage temperature -20-70 °C

Voltage type AC

Supply current 16-16 A

Frequency 50-60 Hz

Standby consumption 0 mA

Nominal discharge surge current In (8/20) 0 kA

Terminal marking indication No

RAL-number 9017

Connection type Screwed terminal

Terminals capacity 1.5-6 mm2

Cable nature for connection Flexible

Cable section 1.5-1.5 mm2

Maximum Input cable diameter 10 mm

Number of RCCBs 0

Connected object No
