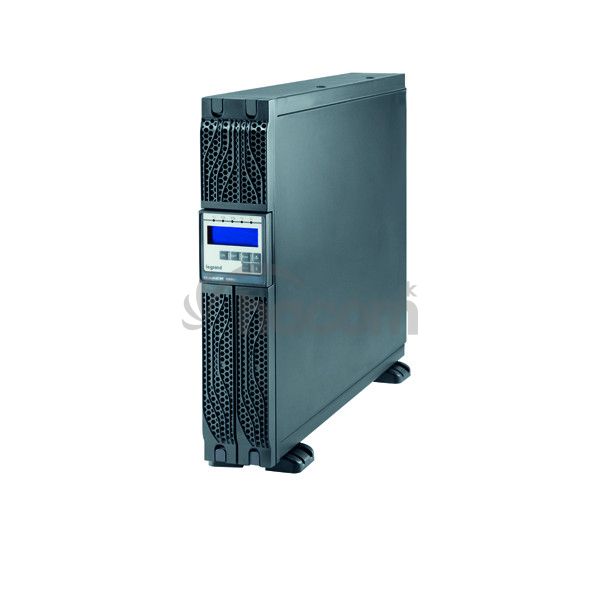

LEGRAND UPS DAKER DK + 6 KVA

LEGRAND UPS DAKER DK + 6 KVA

Online dvojitá konverzia
19“

typ stojana


Účinník : 1
RS232 USB SNMP


Obojstranná obrazovka



Input voltage 176-280 V

Primary frequency 47.5-63 Hz

Number of phases primary 1

Output voltage 228-232 V

Secondary frequency 50-60 Hz

Output effective power 6000 W

Output apparent power 6000 VA

USB interface Yes

With communication interface RS-232 Yes

Number of phases secondary 1

SNMP Yes

Voltage type AC

Height 196 mm

Width 440 mm

Depth 680 mm

Weight 60 kg

Bridging time full load 2 min

Suitable for network-management Yes

USV- technology Online

Construction type 482.6 mm (19 inch) device

Modular No

Max. voltage distortion output (linear load) 3 %

Output power factor 1

Overall efficiency 94 %

Efficiency in eco-mode 97 %

Potential free switch contact No

Auto shut down function No

Input connection Fixed connection

Number of output connections C13 8

Number of output connections C19 2

Number of output connections with protective contact CEE 7/3 (type F) 0

Number of output connections fixed connection 1

Number of output connections French standard (Type E) 0

Degree of protection (IP) IP21

Operating / setting temperature 0-40 °C

Storage temperature 0-50 °C

Supply current 32-33 A

Sound level 50 dB

Terminal marking indication Yes

Type of load Universal

With socket outlet Yes

Contains Batteries and/or Accumulator Yes

IEC code (Pack1) VRLA

Battery ou Accumulator (Pack1) Accumulator (rechargeable)

Element Composition (Pack1) Lead

Number of Pack 1 1

Number of Single Element (Pack1) 1

Single Element weight (Pack1) 1660 g

Pack1 Location Product includes a battery

Regulation Type (Pack1) I : Industrial (not Portable)
