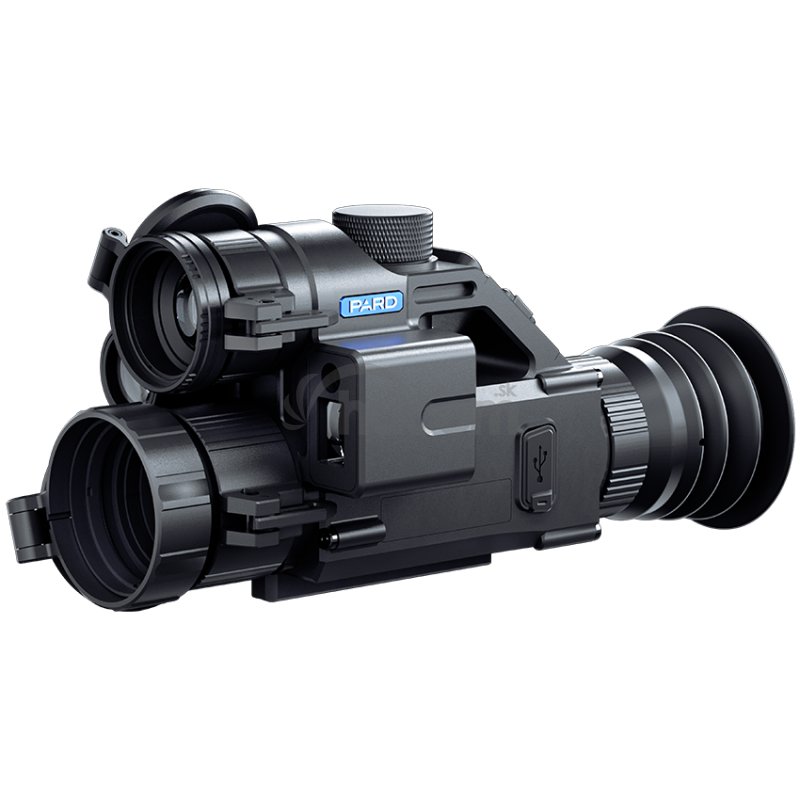

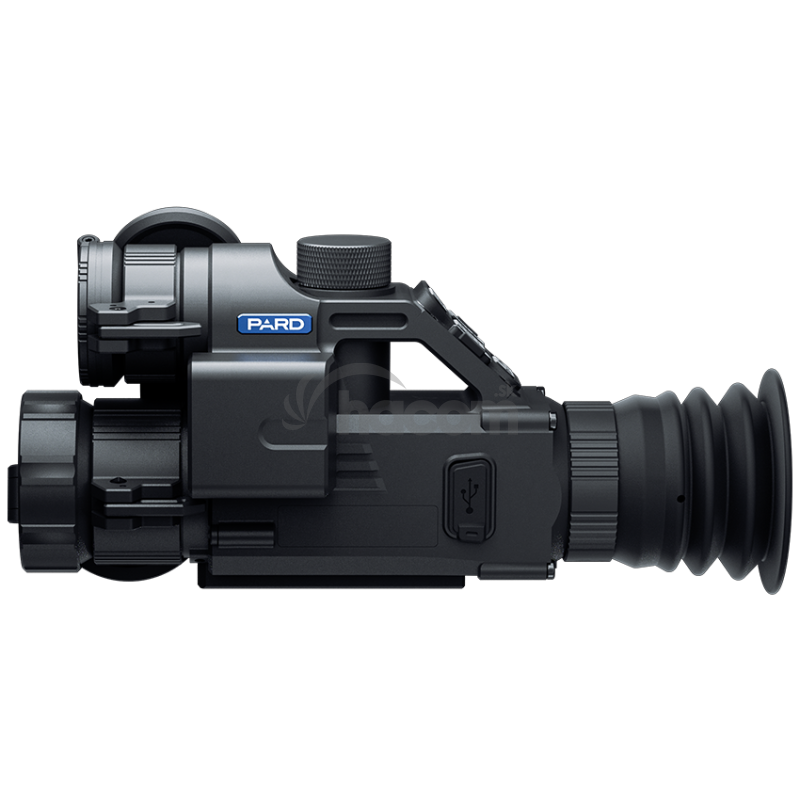

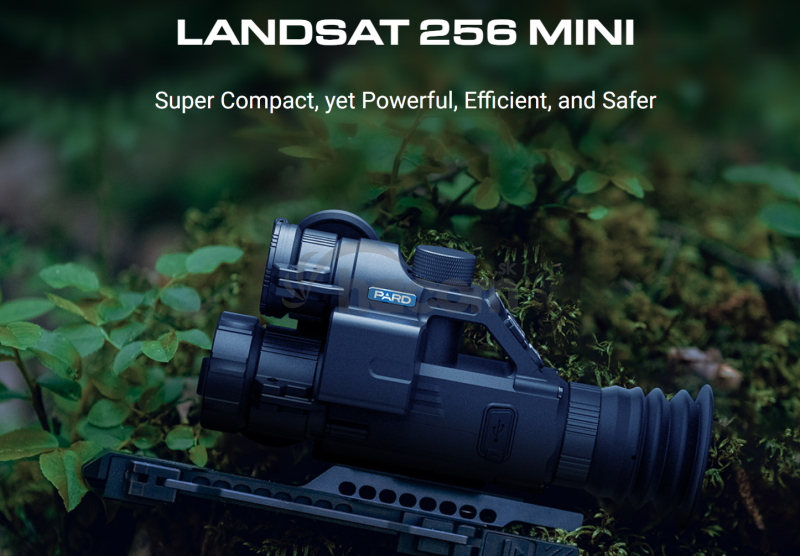

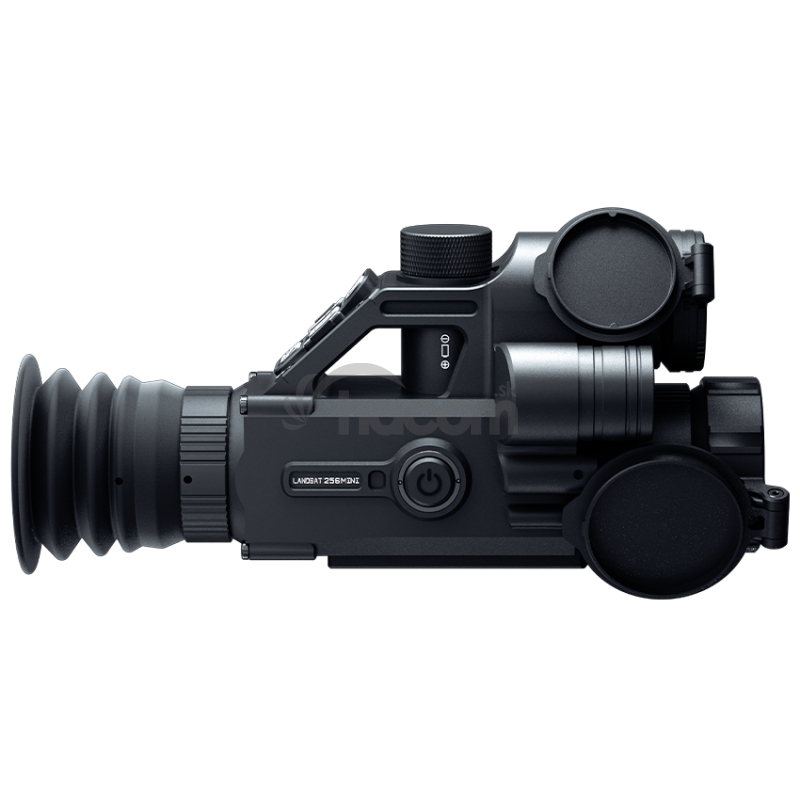

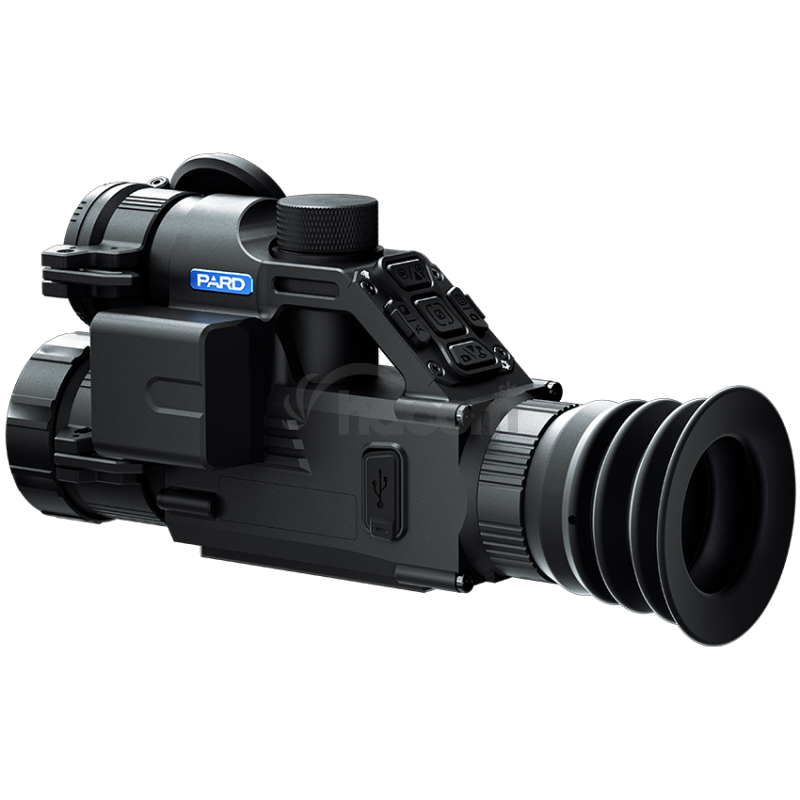

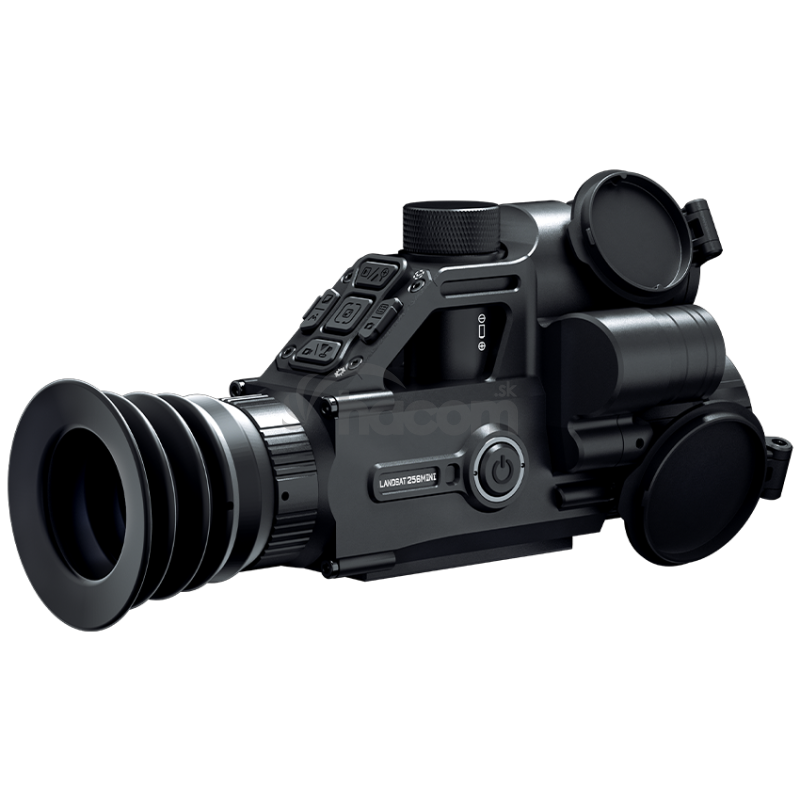

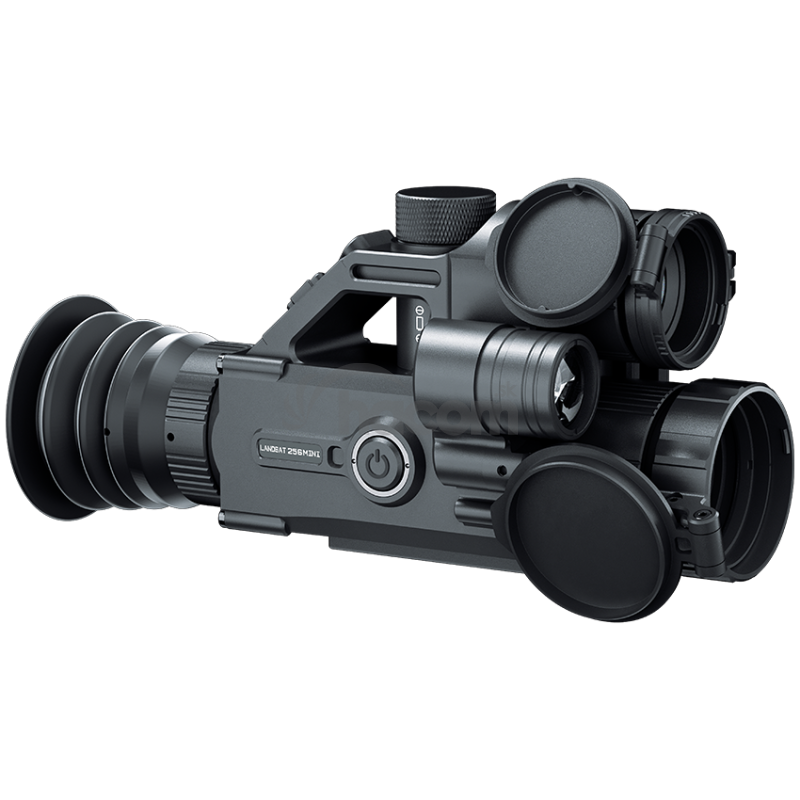

Pard Landsat 256 Mini (19/30mm - 940nm LRF)
technické údaje
| Senzor | |
| Typ | Uncooled VOx (vanádium oxide) |
| Resolution(pixel) | 256*192 |
| Pixel Size(um) | 12*12 |
| NETD | <=25mK(0.025?) |
| Frame Rate(Hz) | 50 |
| Detection Distance(m) | 900 |
| Optika | |
| Image Engine | Pard IREA |
| Objective Lens(mm) | 19/25 |
| Optical Magnification(x) | 3.2/4.2 |
| Digital Zoom(x) | 2/4/6/8 |
| Field of View (Horizontal) | 9.2°/7° |
| Field of View (Vertical) | 6.9°/5.3° |
| Field of View (Diagonal) | 11.5°/8.8° |
| Rozsah zaostrenia | 3m-? |
| Zobrazenie | |
| Typ | OLED |
| Resolution(pixel) | 1024*768 |
| Scene Mode | City/Rain/Forest |

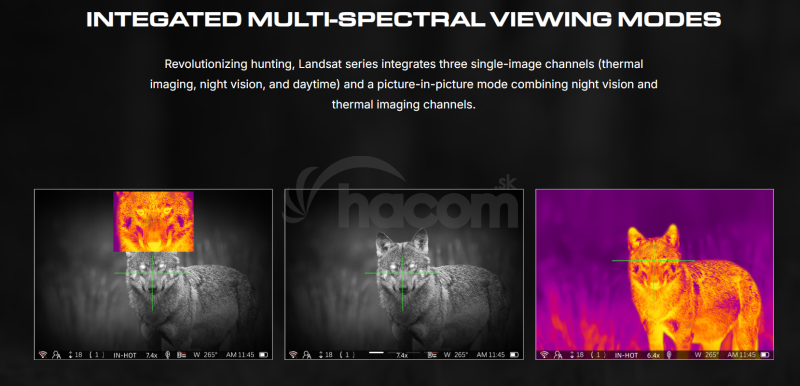

| Image Mode | WT-HOT/BK-HOT/IN-HOT/RD-HOT/SKY |
| Eye Relief(mm) | 25 |
| Diopter Adjustment(D) | -5~5 |
| Photo / Video | |
| Photo Resolution(pixel) | 1024*768 |
| Photo Format | .JPG |
| Video Resolution(pixel) | 1024*768 |
| Formát videa | .MP4 |
| Úložisko | Built-in EMMC (32 GB) |
| Main Function | |

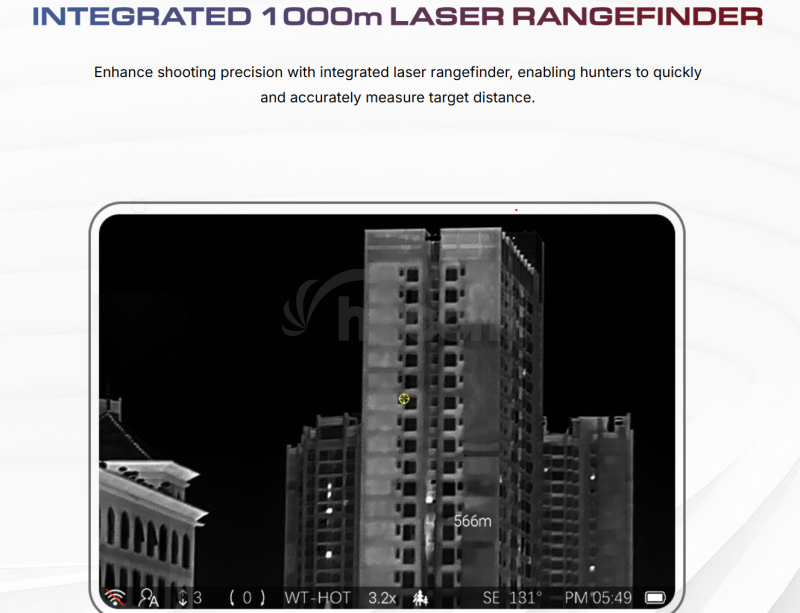

| LRF Detection Range(m/yd) | 1000/1200 |
| PIP | Áno |
| Gyroskop | Áno |
| Nahrávanie v slučke | Áno |
| Hot Track | Áno |
| E-compass | Áno |
| Uzávierka | Mechanická uzávierka |
| Mikrofón | Áno |
| Firmware Upgrade | Áno |
| IR Illuminator | |
| IR Power | 5W |
| IR Illuminating Level | 3 Levels |
| IR Distance(m) | 350 |
| IR Wavelength(nm) | 850/940 |
| Spojenia | |
| USB typu C | Áno |
| WiFi | Áno |
| Supported Apps | PardVision2 |
| Zdroj | |
| Typ batérie | Lítium Ion 18650*1 |
| Output Voltage(V) | 3.7 |
| Operating time(h) | <=6 |
| External Power Supply(V) | Typ-C |
| Environmental Characteristic | |
| Degree of Protection | IP67 |
| Operating Temp(?/?) | -30 ~ +55 / -22 ~ +131 |
| Materiál | |
| Bývanie | Alumínium Alloy |
| Objective Lens | All-glass multi-coated lens |
| Meranie | |

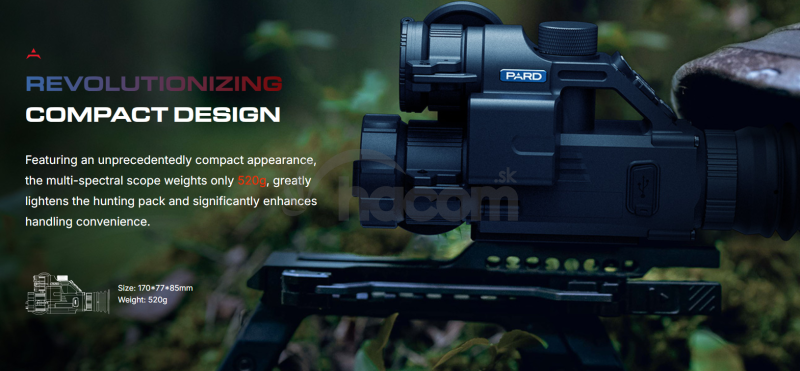

| Product Dimension(s IR illuminator&LRF, L x W x H, mm) | 170*77*85 |
| N.W/pcs(with LRF&battery, g) | 520 |
